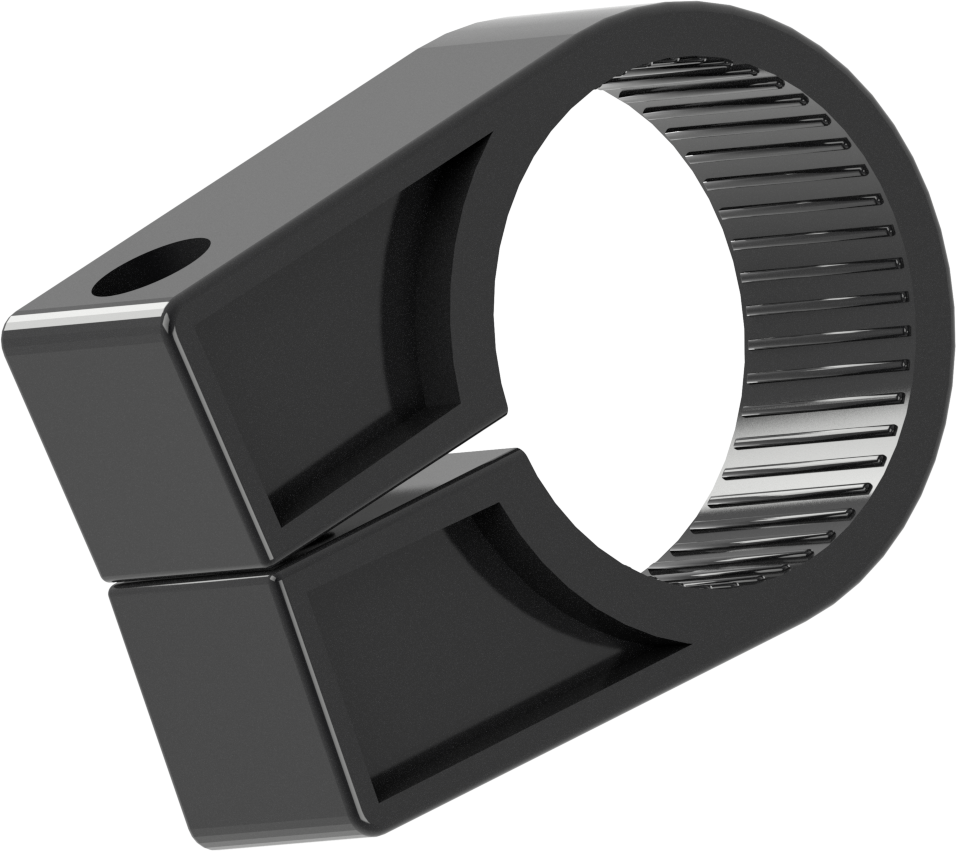

Remora Clingstrap Cable Cleats
The Clingstrap Cable Cleat is a comprehensive range of single fixing cable cleats to provide a simple, but strong means of securing cables. Suitable for use with cables or pipes up to 5.0 – 50.8mm in diameter.
• Fastening/fitting/routing single and multiple conductor low and medium voltage cables
• Excellent weathering and high resistance to ultraviolet light
• Excellent stiffness
• Fully recyclable
Standards: European Standard IEC 61914:2009
Temperature Range: -40°C to 40°C
Material: Polypropylene / LSZH Polypropylene
| Code | Min | Max | Stud Hole Size | (A) | (B) | (C) | (D) |
| C3 | 5 | 7.6 | M6 | 12.0 | 25.0 | 15.0 | 6.0 |
| C4 | 7.7 | 10 | M6 | 14.0 | 27.0 | 15.0 | 7.0 |
| C5 | 10.1 | 12.7 | M6 | 16.0 | 29.0 | 15.0 | 8.0 |
| C6 | 12.6 | 15.2 | M6 | 19.0 | 32.0 | 15.0 | 8.0 |
| C7 | 15.1 | 17.8 | M6 | 23.0 | 36.0 | 16.0 | 8.0 |
| C8 | 17.7 | 20.3 | M6 | 24.0 | 38.0 | 19.0 | 8.0 |
| C9 | 20.2 | 22.8 | M6 | 27.0 | 42.0 | 19.0 | 8.0 |
| C10 | 22.7 | 25.4 | M6 | 31.0 | 45.0 | 19.0 | 8.0 |
| C11 | 25.3 | 27.7 | M6 | 33.0 | 50.0 | 22.0 | 9.0 |
| C12 | 27.6 | 30.5 | M10 | 38.0 | 58.0 | 24.0 | 11.0 |
| C14 | 30.4 | 35.5 | M10 | 44.0 | 64.0 | 25.0 | 11.0 |
| C16 | 35.4 | 40.6 | M10 | 49.0 | 70.0 | 25.0 | 11.0 |
| C18 | 40.5 | 45.7 | M10 | 53.0 | 74.0 | 25.0 | 11.0 |
| C20 | 45.6 | 50.8 | M10 | 57.0 | 80.0 | 26.0 | 11.0 |
| C3LS | 5 | 7.6 | M6 | 12.0 | 25.0 | 15.0 | 6.0 |
| C4LS | 7.7 | 10 | M6 | 14.0 | 27.0 | 15.0 | 7.0 |
| C5LS | 10.1 | 12.7 | M6 | 16.0 | 29.0 | 15.0 | 8.0 |
| C6LS | 12.6 | 15.2 | M6 | 19.0 | 32.0 | 15.0 | 8.0 |
| C7LS | 15.1 | 17.8 | M6 | 23.0 | 36.0 | 16.0 | 8.0 |
| C8LS | 17.7 | 20.3 | M6 | 24.0 | 38.0 | 19.0 | 8.0 |
| C9LS | 20.2 | 22.8 | M6 | 27.0 | 42.0 | 19.0 | 8.0 |
| C10LS | 22.7 | 25.4 | M6 | 31.0 | 45.0 | 19.0 | 8.0 |
| C11LS | 25.3 | 27.7 | M6 | 33.0 | 50.0 | 22.0 | 9.0 |
| C12LS | 27.6 | 30.5 | M10 | 38.0 | 58.0 | 24.0 | 11.0 |
| C14LS | 30.4 | 35.5 | M10 | 44.0 | 64.0 | 25.0 | 11.0 |
| C16LS | 35.4 | 40.6 | M10 | 49.0 | 70.0 | 25.0 | 11.0 |
| C18LS | 40.5 | 45.7 | M10 | 53.0 | 74.0 | 25.0 | 11.0 |
| C20LS | 45.6 | 50.8 | M10 | 57.0 | 80.0 | 26.0 | 11.0 |
